Managing Databricks Genie Agents as Code with Databricks Declarative Automation Bundles (DABs)

Managing Databricks Genie Agents as Code with Databricks Declarative Automation Bundles (DABs)

Databricks Genie Agents (formerly Genie Spaces) are domain-specific, no-code chat interfaces that let business users ask natural-language questions about their data and get back SQL queries, result tables, and visualizations. As a Genie Agent grows more sophisticated, with carefully crafted instructions, SQL filter snippets, example queries, and evaluation benchmarks, a new problem emerges: how do you manage all of that configuration reliably across environments?

If your team is editing agent instructions directly in the Genie UI, you have no version history, no code review, and no reliable path to promote changes from dev to production. One wrong update and there's no rollback.

In this post I'll show how to solve that using Declarative Automation Bundles (DABs) to manage a Genie Agent and its underlying Unity Catalog metric view entirely as code.

The problem with UI-only Genie Agent management

A Genie Agent ready for production carries a surprising amount of configuration:

  • Text instructions: rules governing how the agent interprets questions, resolves ambiguity, and formats responses
  • SQL filter snippets: pre-built filters users can reference naturally ("show me US revenue")
  • Example queries: Q&A pairs that teach the agent how to respond to common questions
  • Benchmark questions: ground truth SQL used to evaluate answer quality
  • Column configs: controls format assistance (how values are displayed) and entity matching (so "germany" resolves to Germany in the Country dimension); entity matching requires format assistance to be enabled on the column

When all of this lives only in the UI, you get:

  • No audit trail for who changed what and when
  • No peer review before changes hit production
  • No reliable way to promote the exact same configuration from dev to prod
  • No rollback if a bad instruction update breaks query behavior

The fix: treat the Genie Agent like any other piece of software: version-controlled, reviewed, and deployed through a pipeline.

Solution overview: Declarative Automation Bundles

Declarative Automation Bundles (DABs) is Databricks' infrastructure-as-code framework. It supports jobs, pipelines, dashboards, and as of CLI v1.10, Genie Agents as first-class resources.

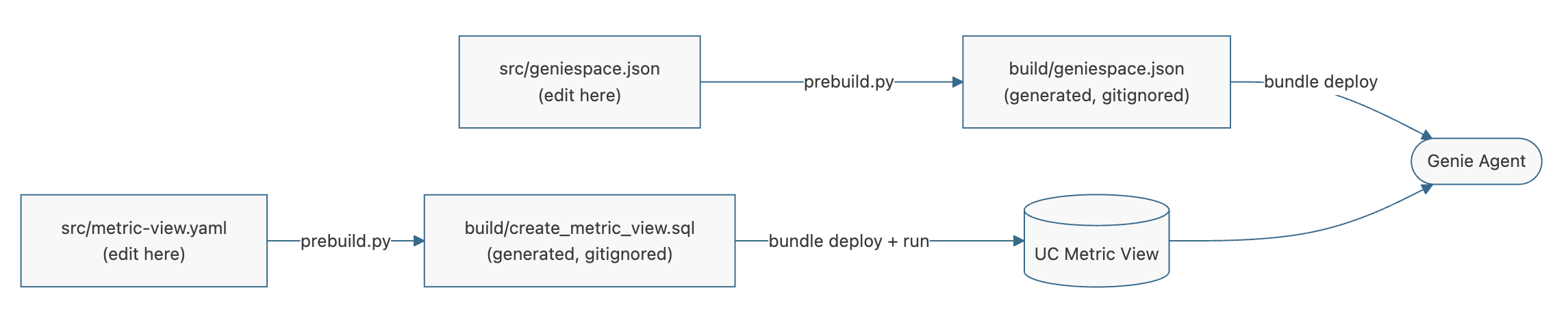

The approach has two key pieces:

  1. UC Metric View: the semantic layer that backs the Genie Agent, defined in YAML
  2. Genie Agent: the agent configuration (instructions, snippets, benchmarks), exported from the workspace and committed as JSON

Both are versioned in git and deployed via databricks bundle deploy.

Repository structure

The full example is on GitHub: github.com/anhhchu/genie-agent-cicd

genie-agent-cicd/
├── databricks.yml                        # bundle config, targets (dev/prod)
├── prebuild_notebook.py                  # resolves catalog/schema — runs locally OR in Databricks
│
├── resources/
│   ├── metric_view.job.yml               # job: CREATE OR REPLACE metric view
│   └── tpcds_retail.genie_space.yml      # Genie Agent resource definition
│
├── src/                                  # source of truth — uses ${catalog}/${schema} placeholders
│   ├── metric-view.yaml                  # metric view dimensions and measures (edit this)
│   └── tpcds_retail.geniespace.json      # Genie Agent content (edit this)
│
└── build/                                # generated by prebuild_notebook.py — gitignored
    └── tpcds_retail.geniespace.json

Two files are the source of truth: src/metric-view.yaml defines the semantic layer (dimensions, measures, synonyms), and src/tpcds_retail.geniespace.json holds the agent configuration (instructions, SQL snippets, benchmarks). A small Python script (prebuild_notebook.py) substitutes ${catalog} and ${schema} placeholders into the Genie Agent JSON before deployment. The Genie Agent and metric view are both deployed via databricks bundle deploy, with the metric view applied by running the bundle job.

Example dataset

The walkthrough below uses samples.tpcds_sf1, a TPC-DS retail benchmark dataset that comes pre-loaded in every Databricks workspace. It contains three sales fact tables (store_sales, catalog_sales, web_sales) plus standard dimension tables (date_dim, item, customer). No data setup is required. You can follow every step using this dataset as-is.

The same pattern applies to your own data: replace samples.tpcds_sf1 with your source tables, and replace <your_catalog>.<your_schema> with the catalog and schema where you want the base view and metric view to live.

Prerequisites

1. Clone the repo

git clone https://github.com/anhhchu/genie-agent-cicd
cd genie-agent-cicd

2. Install the Databricks CLI

The bundle commands require Databricks CLI v1.10 or later.

macOS:

brew tap databricks/tap
brew install databricks

Linux / macOS (curl):

curl -fsSL https://raw.githubusercontent.com/databricks/setup-cli/main/install.sh | sh

Windows:

winget install Databricks.DatabricksCLI

Verify the installation:

databricks --version

3. Configure workspace profiles

Each target in databricks.yml maps to a named profile in ~/.databrickscfg. Set up one profile per workspace using OAuth (recommended):

# Dev workspace
databricks auth login --host https://<dev-workspace>.cloud.databricks.com --profile DEFAULT

# Prod workspace
databricks auth login --host https://<prod-workspace>.cloud.databricks.com --profile PROD

Both commands open a browser for OAuth login and write the credentials to ~/.databrickscfg (substitute the hostname for your cloud — Azure workspaces use adb-<id>.<region>.azuredatabricks.net, GCP workspaces use <id>.gcp.databricks.com):

[DEFAULT]
host = https://<dev-workspace>.cloud.databricks.com

[PROD]
host = https://<prod-workspace>.cloud.databricks.com

Then update databricks.yml to reference the correct profile per target:

targets:
  dev:
    workspace:
      profile: DEFAULT
    variables:
      catalog: dev_catalog
      schema: genie

  prod:
    workspace:
      profile: PROD
    variables:
      catalog: prod_catalog
      schema: genie

Step 1: Create a unified base view (multi-fact workaround)

Unity Catalog metric views currently support a single source table or view. The TPC-DS schema has three separate fact tables: store_sales, catalog_sales, and web_sales. To use all three as the basis for one metric view, first create a base view that unions them:

CREATE VIEW <your_catalog>.<your_schema>.tpcds_all_sales AS
WITH s AS (
  SELECT 'Store'   AS channel, ss_sold_date_sk AS sold_date_sk, ss_item_sk AS item_sk,
         ss_customer_sk AS customer_sk, ss_ticket_number AS order_number,
         ss_quantity AS quantity, ss_ext_sales_price AS ext_sales_price,
         ss_ext_discount_amt AS ext_discount_amt, ss_net_paid AS net_paid, ss_net_profit AS net_profit
  FROM samples.tpcds_sf1.store_sales
  UNION ALL
  SELECT 'Catalog', cs_sold_date_sk, cs_item_sk, cs_bill_customer_sk, cs_order_number,
         cs_quantity, cs_ext_sales_price, cs_ext_discount_amt, cs_net_paid, cs_net_profit
  FROM samples.tpcds_sf1.catalog_sales
  UNION ALL
  SELECT 'Web', ws_sold_date_sk, ws_item_sk, ws_bill_customer_sk, ws_order_number,
         ws_quantity, ws_ext_sales_price, ws_ext_discount_amt, ws_net_paid, ws_net_profit
  FROM samples.tpcds_sf1.web_sales
)
SELECT
  s.channel, s.order_number, s.quantity, s.ext_sales_price,
  s.ext_discount_amt, s.net_paid, s.net_profit, s.customer_sk,
  d.d_date AS sold_date, d.d_year AS sold_year, d.d_moy AS sold_month, d.d_qoy AS sold_quarter,
  i.i_category AS category, i.i_brand AS brand, i.i_class AS class, i.i_product_name AS product_name
FROM s
JOIN samples.tpcds_sf1.date_dim d ON s.sold_date_sk = d.d_date_sk
JOIN samples.tpcds_sf1.item i     ON s.item_sk = i.i_item_sk

This view does three things:

  • Unions the three sales fact tables and tags each row with a channel column (Store, Catalog, Web)
  • Joins the date dimension to produce human-readable date columns (sold_date, sold_year, sold_month, sold_quarter)
  • Joins the item dimension to pull in category, brand, class, and product_name

The result is a single flat view with one row per sales line item, exactly what a metric view source needs.

Note: Metric views are designed around a single logical source. Directly joining multiple independent fact tables inside a single metric view can cause fan-out and incorrect aggregations. The officially recommended approach is to create a bridge/base SQL view that flattens the facts to a well-defined grain first — which is exactly what tpcds_all_sales does. For multi-grain analysis (e.g., orders + returns at different grains), consider Dashboard Relationships instead.

Step 2: Define your UC metric view in YAML

The metric view YAML defines dimensions, measures, and their synonyms. Synonyms are critical: they teach the Genie Agent which natural-language terms map to which columns.

# src/metric-view.yaml
version: 1.1

source: ${catalog}.${schema}.tpcds_all_sales

dimensions:
  - name: Channel
    expr: channel
    comment: "Sales channel: Store, Catalog, or Web"
    synonyms:
      - sales channel
      - division
      - segment

  - name: Category
    expr: category
    synonyms:
      - product category
      - department

measures:
  - name: Total Sales
    expr: SUM(net_paid)
    comment: "Total revenue after discounts, before tax"
    synonyms:
      - revenue
      - net sales
      - sales

  - name: Profit Margin
    expr: "SUM(net_profit) / NULLIF(SUM(net_paid), 0)"
    comment: "Net profit as a fraction of total sales (0.15 = 15%)"
    synonyms:
      - margin
      - profitability

Source files use ${catalog} and ${schema} as placeholders — no environment-specific values are hardcoded. When you're ready to deploy, run prebuild_notebook.py to stamp the resolved values into build/:

python3 prebuild_notebook.py --target dev
# ✓ build/ ready (target: dev, my_catalog.my_schema)

The script reads catalog and schema directly from the target's variables in databricks.yml and writes a substituted copy of the Genie Agent JSON to build/. The bundle resources point to build/, and build/ is gitignored — only the placeholder source files are committed.

Step 3: Export your Genie Agent from the workspace (optional)

If you already have a Genie Agent configured in the UI, the CLI can export it directly into your bundle. First, find the space ID in the browser URL:

https://<workspace>.cloud.databricks.com/genie/spaces/<SPACE_ID>

Then run:

databricks bundle generate genie-space \
  --existing-id <SPACE_ID> \
  --key tpcds_retail

The --key value (tpcds_retail) becomes the resource key in the generated YAML and the identifier used when re-exporting or referencing the resource later.

This generates two files:

  • src/tpcds_retail.geniespace.json — the full agent configuration
  • resources/tpcds_retail.genie_space.yml — the DABs resource definition

After the initial export, src/tpcds_retail.geniespace.json becomes your source of truth — edit it directly for subsequent changes rather than re-running generate.

The .geniespace.json file is structured JSON, not a raw blob, so every section is directly editable:

{
  "version": 2,
  "instructions": {
    "text_instructions": [
      {
        "id": "...",
        "content": ["# Agent Instructions\r\n", "..."]
      }
    ],
    "sql_snippets": {
      "filters": [...],
      "measures": [...],
      "expressions": [...]
    },
    "example_question_sqls": [...]
  },
  "benchmarks": {
    "questions": [...]
  },
  "data_sources": {
    "tables": [
      {
        "identifier": "...",
        "column_configs": [...]
      }
    ]
  }
}

Step 4: Configure the bundle for multiple environments

databricks.yml defines targets for each environment. A single --target flag promotes the exact same configuration to a different workspace with a different catalog.

The warehouse_id variable is declared at the top level with no default — each target sets its own lookup by warehouse name, which resolves against that target's workspace at deploy time:

bundle:
  name: genie_agent_cicd
  engine: direct  # required for genie_spaces

variables:
  warehouse_id:
    description: SQL warehouse used to create the metric view and Genie Agent.

targets:
  dev:
    default: true
    mode: development
    workspace:
      profile: DEFAULT
    variables:
      catalog: dev_catalog
      schema: genie
      warehouse_id:
        lookup:
          warehouse: Serverless Starter Warehouse

  prod:
    mode: production
    workspace:
      profile: PROD
      root_path: /Workspace/Users/<user>@databricks.com/.bundle/${bundle.name}/${bundle.target}
    variables:
      catalog: prod_catalog
      schema: genie
      warehouse_id:
        lookup:
          warehouse: <prod_warehouse_name>

Step 5: Deploy

The prebuild step substitutes ${catalog}/${schema} into the Genie Agent JSON. It must run before bundle deploy.

Option A — Local CLI (laptop):

# Generate build/ for dev and deploy
python3 prebuild_notebook.py --target dev
databricks bundle deploy --target dev
databricks bundle run metric_view --target dev

# Promote to prod — prebuild stamps prod catalog/schema into build/ first
python3 prebuild_notebook.py --target prod
python3 prebuild_notebook.py --verify prod   # CI guard: exits non-zero on mismatch
databricks bundle deploy --target prod
databricks bundle run metric_view --target prod

Option B — Databricks notebook (no CLI needed):

Run prebuild_notebook interactively in the workspace — set the target widget to dev or prod and run all cells. It resolves paths from the notebook's workspace location.

That's it. The Genie Agent and metric view are now live in the target workspace. Because prebuild_notebook.py writes to build/ each time, there's no risk of committing environment-specific values or having to manually reset between targets.

Deploying from the Databricks workspace UI

If you don't want to install the CLI locally, Databricks supports deploying bundles directly from the workspace. This is especially useful for team members who prefer a UI-driven workflow or don't have a local development environment set up.

Prerequisites:

  • Workspace files must be enabled
  • The bundle must be cloned as a Git folder in the workspace (via Workspace > Git folders > Clone)
  • Serverless compute must be enabled

Workflow:

  1. Clone the repo into your workspace as a Git folder
  2. Open the bundle's Git folder — Databricks automatically detects databricks.yml and shows a bundle management UI
  3. Select the target (dev or prod) from the dropdown
  4. Run prebuild_notebook as a notebook in the workspace (set the target widget and run all cells) to generate build/
  5. Click Deploy to deploy the bundle to the selected target
  6. Click Run next to metric_view to apply the metric view DDL

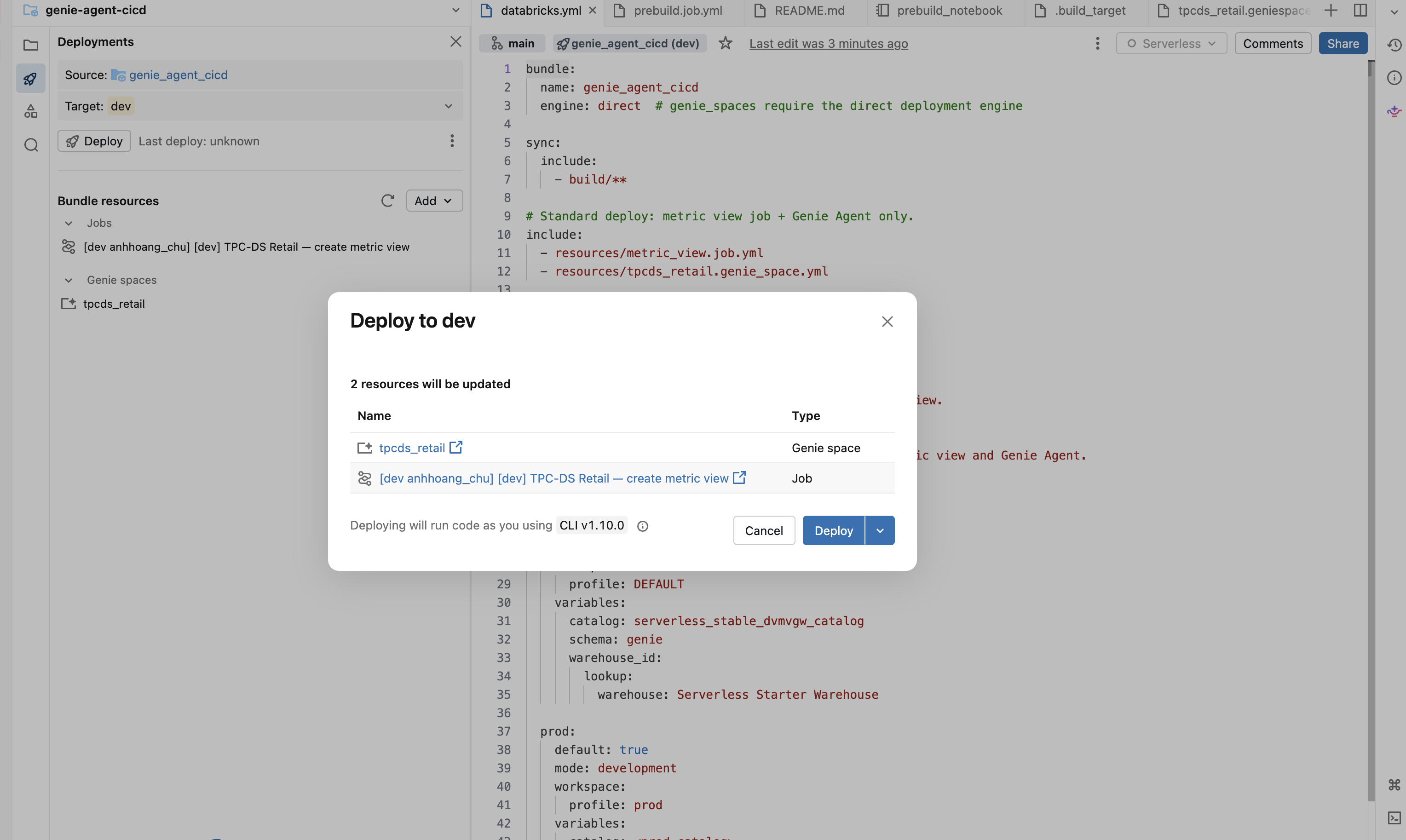

Deploying a Declarative Automation Bundle from the Databricks workspace UI

Limitations to be aware of:

  • Cross-workspace deployment (e.g., promoting from dev to prod in a different workspace) is not available from the UI editor — use the CLI or a CI/CD pipeline for cross-workspace promotion
  • Python for DABs is not supported in workspace mode
  • Bundles inherit permissions from their parent Git folder

The workspace UI is a good fit for day-to-day iteration within a single environment. For multi-environment promotion and CI/CD pipelines, the CLI path (Option A above) remains the recommended approach.

Day-2 workflows

Updating the Genie Agent instructions

Edit src/tpcds_retail.geniespace.json — for example, to add a new SQL filter snippet (use ${catalog}.${schema} for any table references):

"sql_snippets": {
  "filters": [
    {
      "id": "...",
      "display_name": "Store channel only",
      "sql": ["`channel` = 'Store'"],
      "synonyms": ["in-store", "brick and mortar"]
    }
  ]
}

Then:

python3 prebuild_notebook.py --target dev
databricks bundle deploy

Updating a dimension or measure

Edit src/metric-view.yaml, then:

python3 prebuild_notebook.py --target dev
databricks bundle deploy
databricks bundle run metric_view

Pulling UI changes back into source control

If someone made changes directly in the Genie UI (it happens), re-export:

databricks bundle generate genie-space \
  --existing-id <SPACE_ID> \
  --key tpcds_retail

Review the diff with git diff before committing.

Managing multiple Genie Agents

Each agent uses its own --key, so multiple agents coexist in the same bundle without conflict:

databricks bundle generate genie-space \
  --existing-id <SPACE_ID_B> \
  --key finance_agent

Add the new resource to databricks.yml:

include:
  - resources/metric_view.job.yml
  - resources/tpcds_retail.genie_space.yml
  - resources/finance_agent.genie_space.yml

Each agent's files are completely independent — src/finance_agent.geniespace.json and resources/finance_agent.genie_space.yml.

Why this pattern works

The metric view YAML is human-friendly. Dimensions, measures, and synonyms are readable and diff well in pull requests. A reviewer can see exactly which synonym was added or which measure expression changed.

The .geniespace.json is structured JSON, not a blob. When DABs introduced the genie-space resource type, it made the agent config a proper file rather than a stringified JSON-inside-JSON. Every section (instructions, snippets, benchmarks, column configs) is a first-class JSON object you can edit and review.

databricks.yml is the single source of environment config. Catalog and schema are declared once per target. prebuild_notebook.py reads them and stamps the values into build/ before each deploy — no hardcoded values in committed files, no manual reset when switching between dev and prod.

The separation is clean. The metric view (semantic layer) and the agent config (behavior layer) are in separate files with separate edit workflows. Changing a synonym does not require touching the agent instructions. Adding a benchmark question does not require regenerating SQL.

Get started

The full working example is available on GitHub:

github.com/anhhchu/genie-agent-cicd

It includes the TPC-DS retail sales Genie Agent and metric view as a ready-to-deploy example. Clone it, swap in your workspace and catalog, import your own Genie Agent with bundle generate genie-space, and you have a CI/CD-ready Genie Agent in minutes.
